Manual type aluminum foil sealing device POTABLE INDUCTION CAP SEALER
This product is the product which can seal the greatest number of containers and it can seal up to Ø15 ~ Ø120. Particularly, it is mainly used by the food companies which use variety of containers.
・ Hygienic non-metallic structure, compact design ・ Economic output device with Low-power, high-efficiency ・ Adopted Multi-Channel Head ・ Easy to be used for various kinds of low-volumeproduction ・ FND Type, simple for use - Standard can be set by selecting Min, Max, EXT - Sealing time adjustable by Time-click - Data can be stored ・ Adopted quintuple safety devices ・ Porcelain and glass bottle sealing possible by the use of external output ・ Export product - 100V power supply (Japan, US, etc.)
Power supply
AC 220V X 60Hz X 1Phase
External dimension
Width (W)
230mm
Depth(D)
310mm
Height (H)
460mm
Gross weight
about 10.5kg
Used container
Sealing paper dimension
Φ15 ~ Φ120mm
quantity
5-20 EA/Min
Container dimension
External diameter : Φ180
Height: 290mm
※ The product specification mentioned above are subject to change without prior notice for quality improvement and product improvement

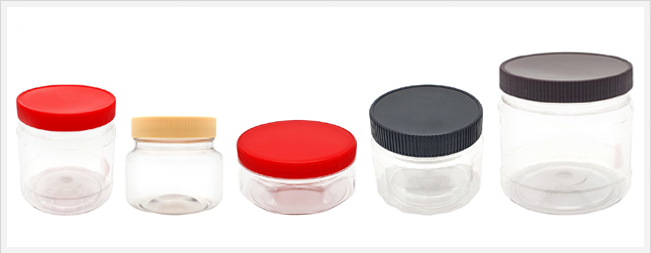

[ A: Ø25 ~ Ø80 , B : 80~120 ]
・ 캡이 있는 제품 중 A: Ø25 ~ Ø80 ,B : 80~120까지 조절지그를 사용하여 다양한 용기들을 실링. ・ 단, 철캡, 도자기 등은 스탠다드타입에 적용되지 않습니다.

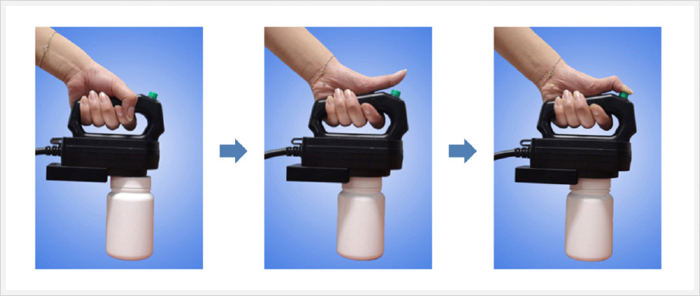

[ Suitable for 1:1 customization ]
・ Sealed products must be transported using a method that applies pressure with a cover. ・ Keep the cap in place during refrigerated storage, as it may become detached. ・ When sealing high-temperature products, ensure that moisture is removed from the adhesive surface.

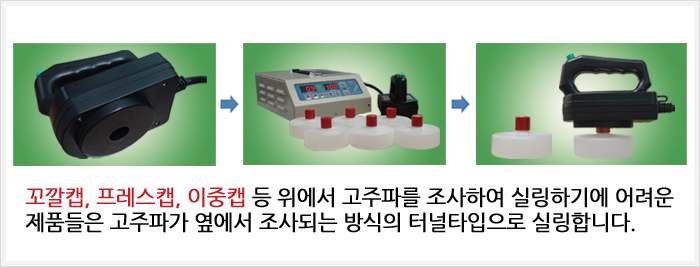

[ The tunnel-type cap is suitable for tall containers ]
・For products with cone caps, press caps, or dual caps—where sealing from above with high-frequency waves is difficult—a tunnel-type sealing method is used, which applies high-frequency energy from the side.
Name
Use
Small head
- When container cap dimension is small - Sealing paper dimension Φ5 ~ Φ30 - When many small products are produced - Applied when special container sealing work is done Apply : SES-2100 (custom made small head)
External output

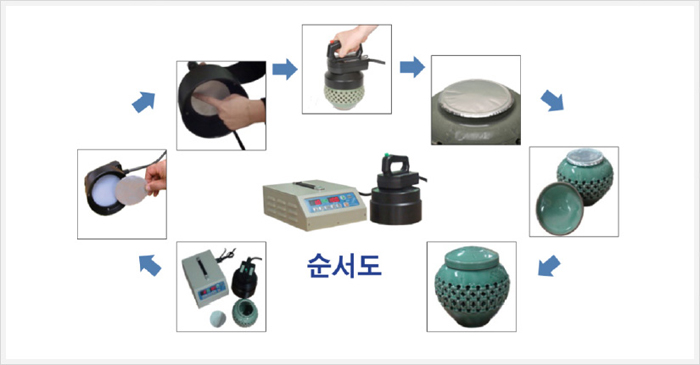

- When container type is made of porcelain and glass container (metal cap) - Applied in case of no-cap container Apply : SES-2100
Container jig
- If container height is small - If hand is caught by the head - Falling container - Container bottom is round - Unusually shaped container Apply : SES-2100
Automation device
- Arrangement is done so that it can be attached to existing automation device. - Semi-automatic injection device - Automatic head moving device to upward and downward Other custom made specification Apply : SES-2100
・ Food container, cosmetic container, ink container, agricultural product storage container, chemical product container, etc. - PET, HDPE, PS, PP, acrylic, glass, ceramic, etc.
